Product introduction
ARCHCELL® WA

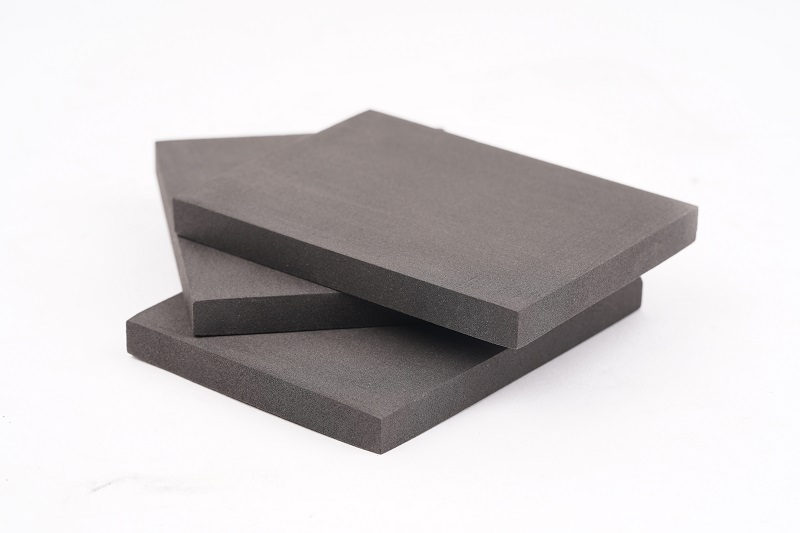

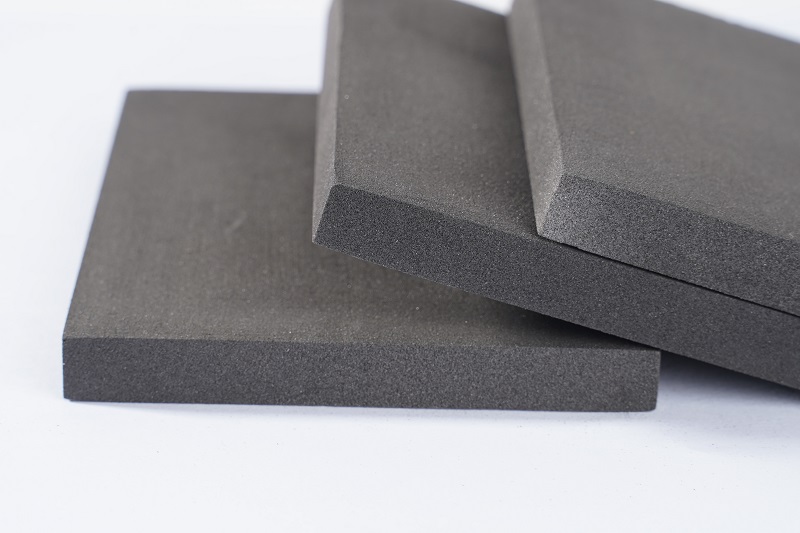

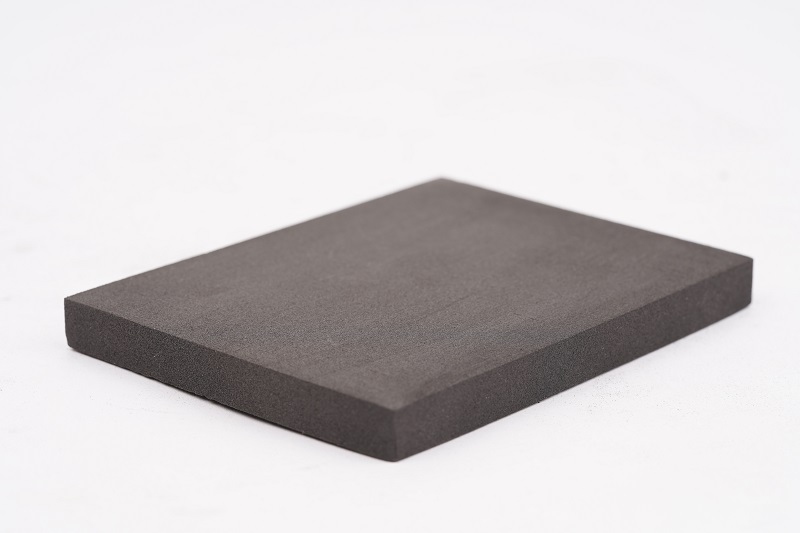

ARCHCELL® is a closed-cell rigid PMI (Polymethacrylimide) foam, which used as the core of lightweight sandwich construction.

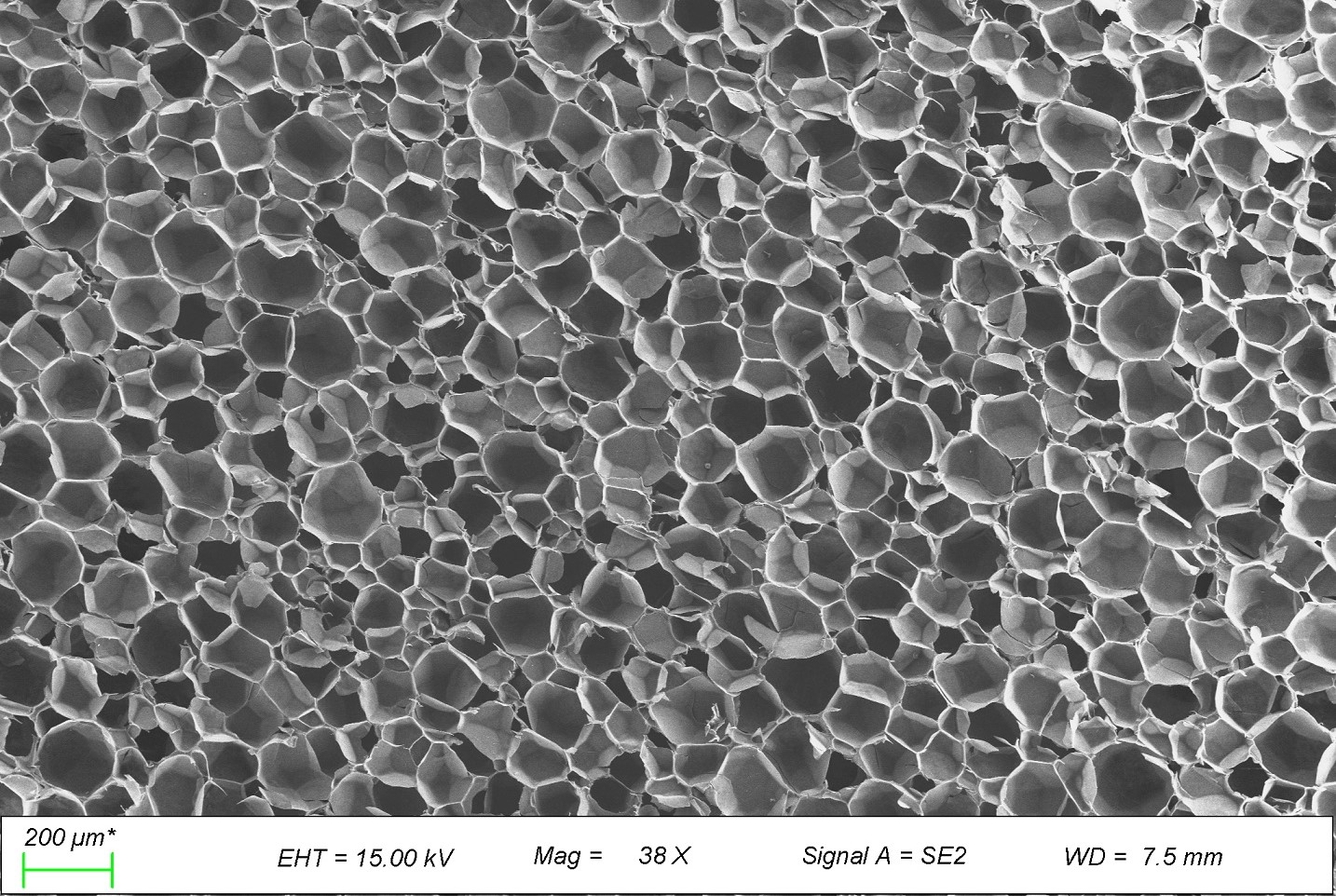

WA (Wave absorption) is a grade suitable for wave absorption needs. By adding carbon wave absorbing material, it forms a foam with good dielectric properties and is capable of absorbing electromagnetic waves at radar frequencies. This grade retains the advantages of PMI foam and can be compatible with the process conditions of 180°C and 0.7 MPa. It is also suitable for various curing processes (autoclave, vacuum infusion, RTM, VARTM, VARI, HP-RTM, etc.). Also, it has good processability and can be easily thermoformed or CNC machined. The design of the holes in this grade and the closed cell structure of the foam ensures a good balance between peel strength and product weight in the sandwich structure parts.
TYPICAL PROPERTY VALUES
Properties |
Unit |
71 WA |
150 WA |
Standard |
Density |
kg/m3 |
75 |
150 |
ISO 845 |
lbs/ft3 |
4.68 |
9.36 |
ASTM D1622 |
|
Compressive Strength |
MPa |
1.7 |
3.6 |
ISO 844 |
psi |
246.5 |
522.0 |
ASTM D1621 |
|
Tensile Strength |
MPa |
2.2 |
3.7 |
ISO 527-2 |
psi |
319.0 |
536.5 |
ASTM D638 |
|
Shear Strength |
MPa |
1.4 |
2.1 |
DIN 53294 |
psi |
203.0 |
304.5 |
ASTM C273 |
|
Elastic Modulus |
MPa |
105 |
180 |
ISO 527-2 |
psi |
15225.0 |
26100.0 |
ASTM D638 |
|
Shear Modulus |
MPa |
42 |
63 |
DIN 53294 |
psi |
6090.0 |
9135.0 |
ASTM C273 |
|
Elongation at Break |
% |
4 |
4 |
ISO 527-2 |
ASTM D638 |
||||
HDT |
℃ |
180.0 |
180.0 |
DIN 53424 |
°F |
365.0 |
365.0 |
The above technical data are typical values at nominal densities
Sales Range
Grade |
Size(mm) |
Standard Sheet Thickness(mm) |
Possible Sheet Thickness(mm) |
71 WA |
2500*1250 |
80 |
1-140 |
150 WA |
2000*1000 |
65 |
1-100 |
Thickness Tolerance ±(0.2mm), others are available upon request
