Product introduction
ARCHCELL® FR

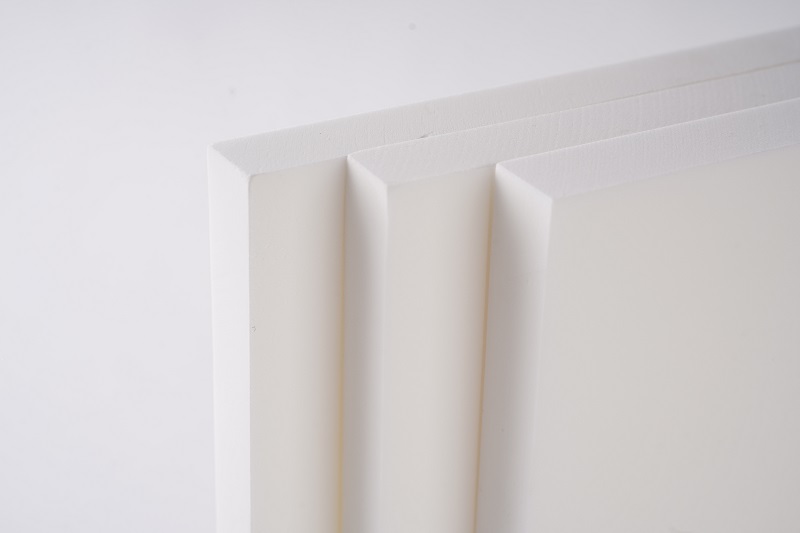

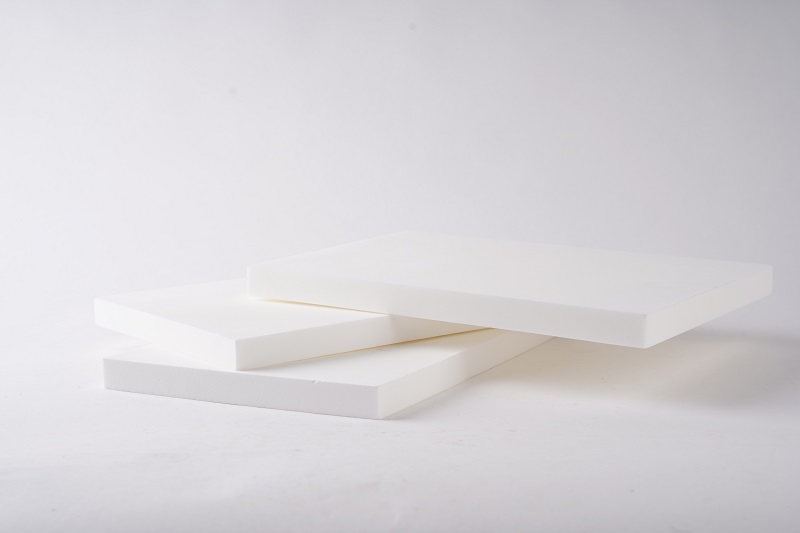

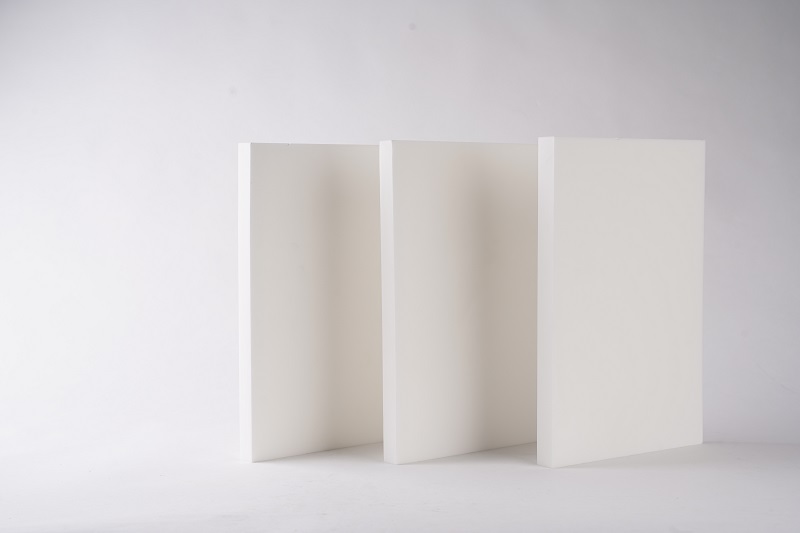

ARCHCELL® is a closed-cell rigid PMI (Polymethacrylimide) foam, which used as the core of lightweight sandwich construction.
FR (Flame Retardant) is a grade suitable for flame retardant requirements. The foam is self-extinguishing inherently and is particularly suitable for the rail, marine and aerospace industries. This grade is suitable for process conditions of 130°C and 0.3 MPa. It is also suitable for various curing processes (autoclave, vacuum bag, RTM, VARTM, VARI, HP-RTM, etc.). Also, it has good processability and can be easily thermoformed or CNC machined. The design of the cells in this grade and the closed cell structure of the foam ensure a good balance between peel strength and product weight when building sandwich structure parts.
TYPICAL PROPERTY VALUES
|
Properties |
Unit |
51 FR |
71 FR |
110 FR |
Standard |
|
Density |
kg/m3 |
52 |
75 |
110 |
ISO 845 |
|
lbs/ft3 |
3.25 |
4.68 |
6.87 |
ASTM D1622 |
|
|
Compressive Strength |
MPa |
0.73 |
1.59 |
2.88 |
ISO 844 |
|
psi |
105.9 |
230.6 |
417.6 |
ASTM D1621 |
|
|
Tensile Strength |
MPa |
1.24 |
2.23 |
3.39 |
ISO 527-2 |
|
psi |
179.8 |
323.4 |
491.6 |
ASTM D638 |
|
|
Shear Strength |
MPa |
0.62 |
1.25 |
2.17 |
DIN 53294 |
|
psi |
89.9 |
181.3 |
314.7 |
ASTM C273 |
|
|
Elastic Modulus |
MPa |
47.5 |
88.2 |
146.5 |
ISO 527-2 |
|
psi |
6887.5 |
12789.0 |
21242.5 |
ASTM D638 |
|
|
Shear Modulus |
MPa |
22.1 |
36.2 |
58 |
DIN 53294 |
|
psi |
3204.5 |
5249.0 |
8410.0 |
ASTM C273 |
|
|
Elongation at Break |
% |
3.5 |
3.5 |
3.5 |
ISO 527-2 |
|
ASTM D638 |
|||||
|
HDT |
℃ |
184.4 |
185.1 |
185.2 |
DIN 53424 |
|
°F |
363.9 |
365.2 |
365.4 |
The above technical data are typical values at nominal densities
Burning Behavior of ARCHCELL®FR
|
Test |
Standard |
Result |
Testing Company |
Report |
|
Horizontal combustion |
UL94 |
HB |
Hangzhou Yanqu Information Technology Co., Ltd. |
202112-06 |
|
Oxygen index |
IS04589 |
24.25% |
202112-06 |
Sales Range
|
Grade |
Size（mm） |
Standard Sheet Thickness（mm） |
Possible Sheet Thickness （mm） |
|
51 FR |
2500*1250 |
90 |
1-155 |
|
71 FR |
2500*1250 |
80 |
1-140 |
|
110 FR |
2160*1100 |
70 |
1-115 |
Thickness Tolerance ±（0.5mm），others are available upon request
Disclaimer
Our technical advice on the applications of our products is given without obligation.
The buyer is responsible for their use and processing, and is also liable for observing any third-party rights.
Technical data concerning our products are typical values. Subject to alteration.
ARCHCELL® is a registered trademark of ARCH Industrial (HK) Limited.
