ARCHCELL® HT

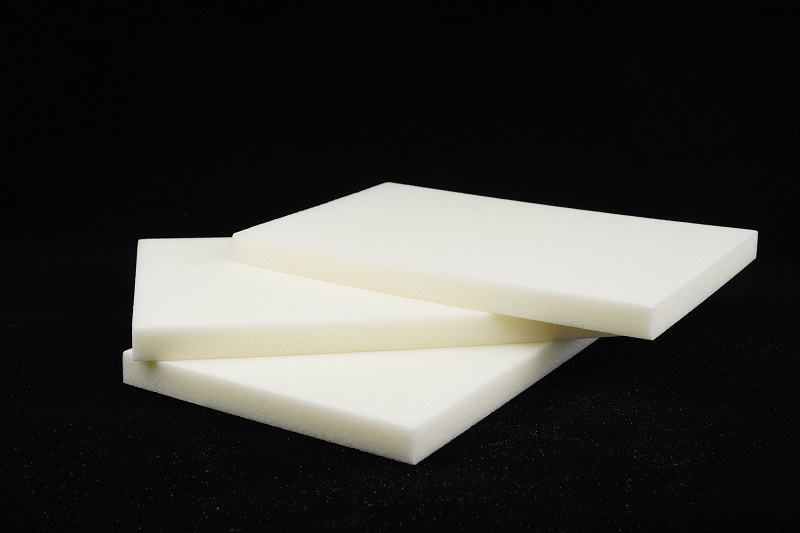

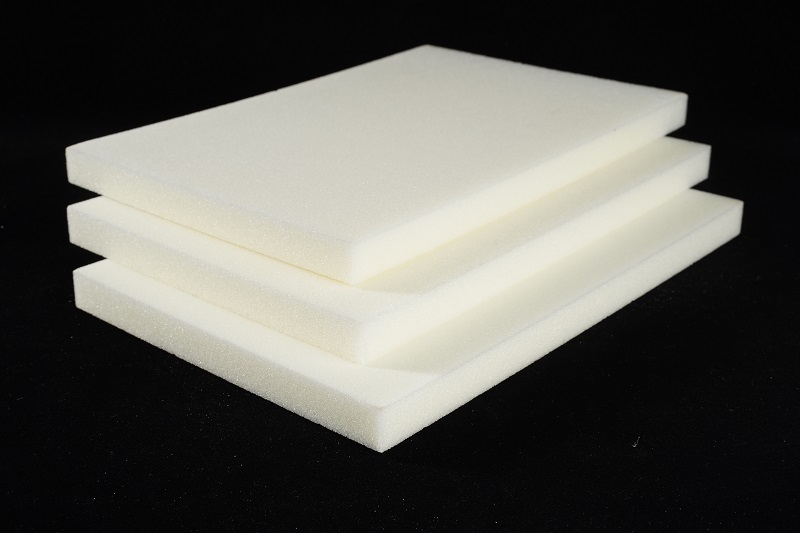

ARCHCELL® is a closed-cell rigid PMI (Polymethacrylimide) foam, which used as the core of lightweight sandwich structure.
HT(High Temperature) grade is suitable for high temperature curing epoxy resin system and can be compatible with the process conditions of 130℃ and 0.7MPa, and can be compatible with the process conditions up to 180℃ and 0.7MPa after heat treatment (based on density), and it is suitable for various curing processes (Autoclave, vacuum infusion, RTM, VARTM, VARI, HP-RTM, etc.). It also can be easily thermoformed or CNC machined.
The cell size is an important specification of the foam material and determines the difference in the amount of curing resin absorbed during the foam processing. We have divided it according to the cell size in order to better fit the different processing processes.
TYPICAL PROPERTY VALUES
ARCHCELL® HT-UFC

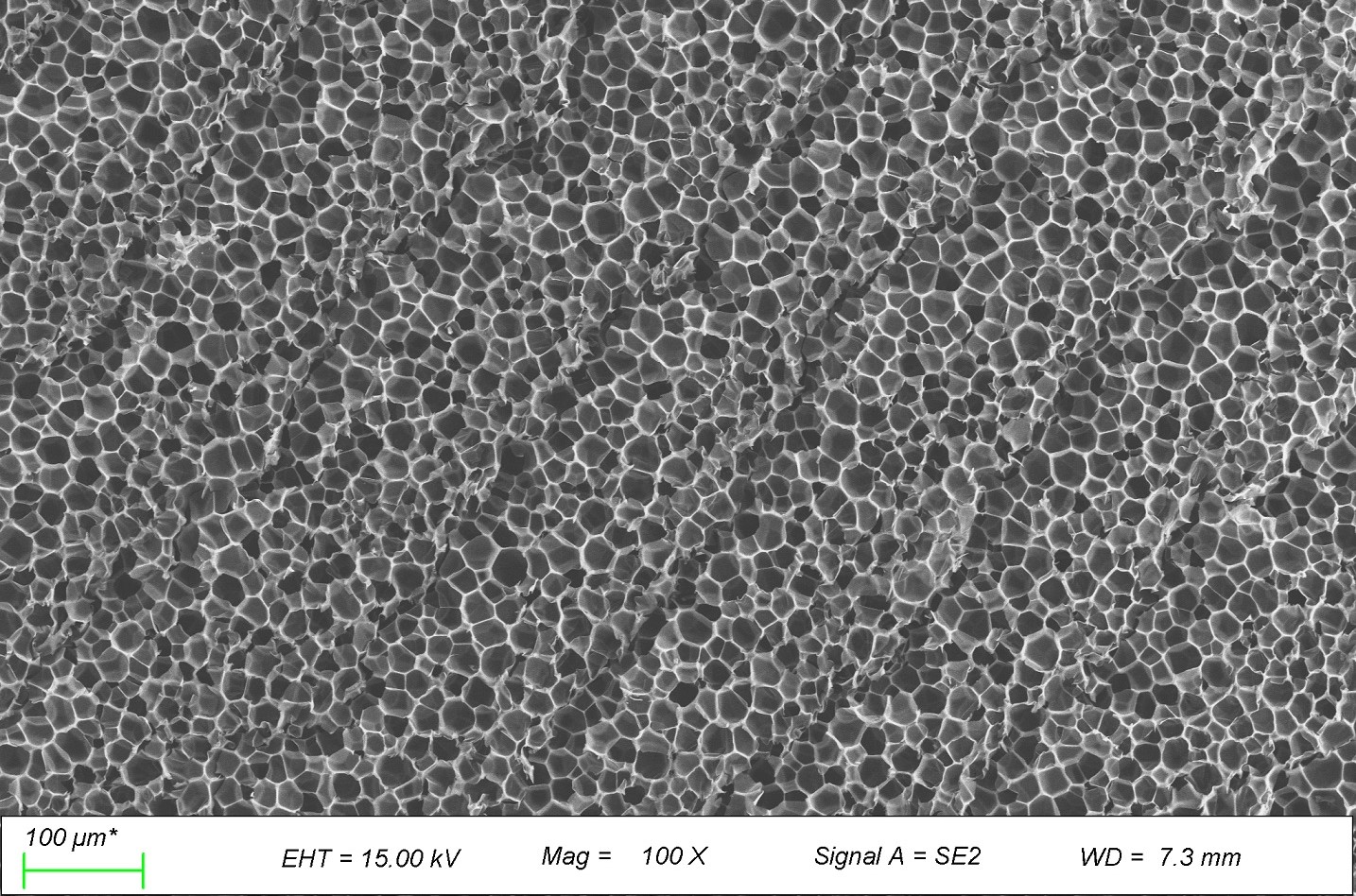

UFC is a Ultra fine cell structure.
|
Properties |
Unit |
71 HT-UFC |
110 HT-UFC |
Standard |
|
Density |
kg/m3 |
75 |
110 |
ISO 845 |
|
lbs/ft3 |
4.68 |
6.87 |
ASTM D1622 |
|
|
Compressive Strength |
MPa |
1.7 |
3.65 |
ISO 844 |
|
psi |
246.5 |
529.3 |
ASTM D1621 |
|
|
Tensile Strength |
MPa |
2.14 |
4.22 |
ISO 527-2 |
|
psi |
310.3 |
611.9 |
ASTM D638 |
|
|
Shear Strength |
MPa |
1.24 |
2.42 |
DIN 53294 |
|
psi |
179.8 |
350.9 |
ASTM C273 |
|
|
Elastic Modulus |
MPa |
101.3 |
180.1 |
ISO 527-2 |
|
psi |
14688.5 |
26114.5 |
ASTM D638 |
|
|
Shear Modulus |
MPa |
40 |
75.6 |
DIN 53294 |
|
psi |
5800.0 |
10962.0 |
ASTM C273 |
|
|
Elongation at Break |
% |
5 |
5 |
ISO 527-2 |
|
ASTM D638 |
||||
|
HDT |
℃ |
217.2 |
222.3 |
DIN 53424 |
|
°F |
423.0 |
432.1 |
The above technical data are typical values at nominal densities
ARCHCELL® HT-FC

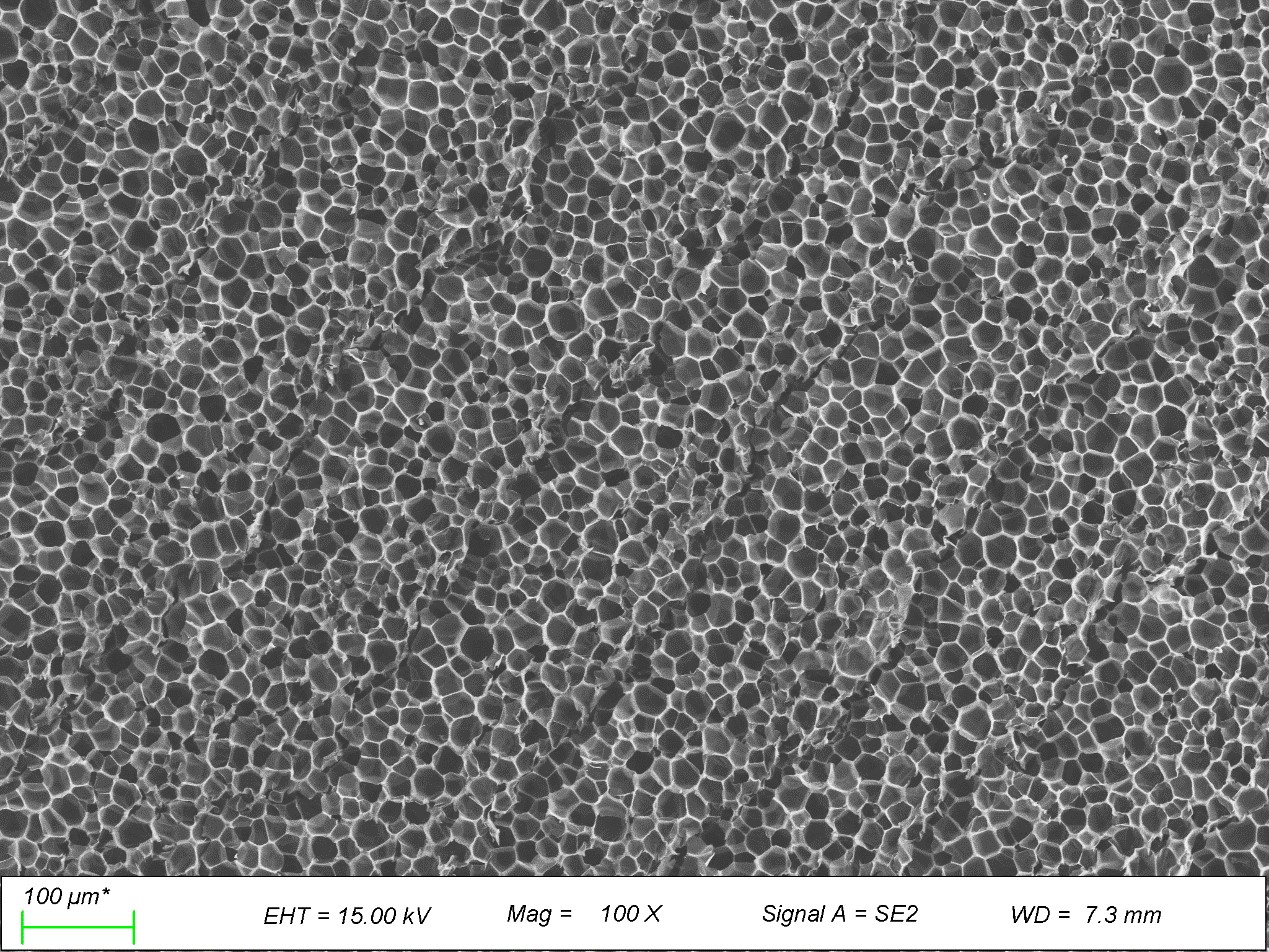

FC is a fine cell structure that guarantees a lowest curing resin absorption of up to 50g/㎡, thus reducing the weight of the final product, and is particularly suitable for vacuum infusion and RTM processes.
|
Properties |
Unit |
51 HT-FC |
71 HT-FC |
110 HT-FC |
Standard |
|
Density |
kg/m3 |
52 |
75 |
110 |
ISO 845 |
|
lbs/ft3 |
3.25 |
4.68 |
6.87 |
ASTM D1622 |
|
|
Compressive Strength |
MPa |
0.79 |
1.7 |
3.65 |
ISO 844 |
|
psi |
114.6 |
246.5 |
529.3 |
ASTM D1621 |
|
|
Tensile Strength |
MPa |
1.54 |
2.14 |
4.22 |
ISO 527-2 |
|
psi |
223.3 |
310.3 |
611.9 |
ASTM D638 |
|
|
Shear Strength |
MPa |
0.75 |
1.24 |
2.42 |
DIN 53294 |
|
psi |
108.8 |
179.8 |
350.9 |
ASTM C273 |
|
|
Elastic Modulus |
MPa |
71.6 |
101.3 |
180.1 |
ISO 527-2 |
|
psi |
10382.0 |
14688.5 |
26114.5 |
ASTM D638 |
|
|
Shear Modulus |
MPa |
21.7 |
40 |
75.6 |
DIN 53294 |
|
psi |
3146.5 |
5800.0 |
10962.0 |
ASTM C273 |
|
|
Elongation at Break |
% |
5 |
5 |
5 |
ISO 527-2 |
|
ASTM D638 |
|||||
|
HDT |
℃ |
213.2 |
217.2 |
222.3 |
DIN 53424 |
|
°F |
415.8 |
423.0 |
432.1 |
The above technical data are typical values at nominal densities
ARCHCELL ® 31HT-FC DIELECTRIC PROPERTIES
Test Frequency Range: 350-10000MHz
Test Method: GB/T 7265.1-1987，Perturbation method
Test company: Sichuan Fengxi Inspection and Testing Co., Ltd.，Report FXBG2024101109-L
|
Frequency（MHz） |
Properties |
ARCHCELL®31HT-FC |
|
351 |
εr' |
1.05 |
|
tanδε |
0.000972 |
|
|
604 |
εr' |
1.05 |
|
tanδε |
0.000992 |
|
|
1817 |
εr' |
1.05 |
|
tanδε |
0.000864 |
|
|
3033 |
εr' |
1.06 |
|
tanδε |
0.000652 |
|
|
4257 |
εr' |
1.06 |
|
tanδε |
0.00079 |
|
|
5488 |
εr' |
1.06 |
|
tanδε |
0.000858 |
|
|
6728 |
εr' |
1.06 |
|
tanδε |
0.000813 |
|
|
7973 |
εr' |
1.07 |
|
tanδε |
0.000998 |
|
|
9224 |
εr' |
1.07 |
|
tanδε |
0.000985 |
The above technical data are typical values at nominal densities
ARCHCELL ® 51HT-FC DIELECTRIC PROPERTIES
Test Frequency Range: 350-10000MHz
Test Method: GB/T 7265.1-1987，Perturbation method
Test company: Sichuan Fengxi Inspection and Testing Co., Ltd.，Report FXBG2024101110-L
|
Frequency（MHz） |
Properties |
ARCHCELL®51HT-FC |
|
350 |
εr' |
1.08 |
|
tanδε |
0.00084 |
|
|
604 |
εr' |
1.08 |
|
tanδε |
0.00119 |
|
|
1817 |
εr' |
1.08 |
|
tanδε |
0.00101 |
|
|
3033 |
εr' |
1.08 |
|
tanδε |
0.00117 |
|
|
4257 |
εr' |
1.08 |
|
tanδε |
0.00106 |
|
|
5488 |
εr' |
1.08 |
|
tanδε |
0.00109 |
|
|
6727 |
εr' |
1.08 |
|
tanδε |
0.00111 |
|
|
7973 |
εr' |
1.08 |
|
tanδε |
0.00124 |
|
|
9224 |
εr' |
1.09 |
|
tanδε |
0.00132 |
The above technical data are typical values at nominal densities
ARCHCELL® HT-MC

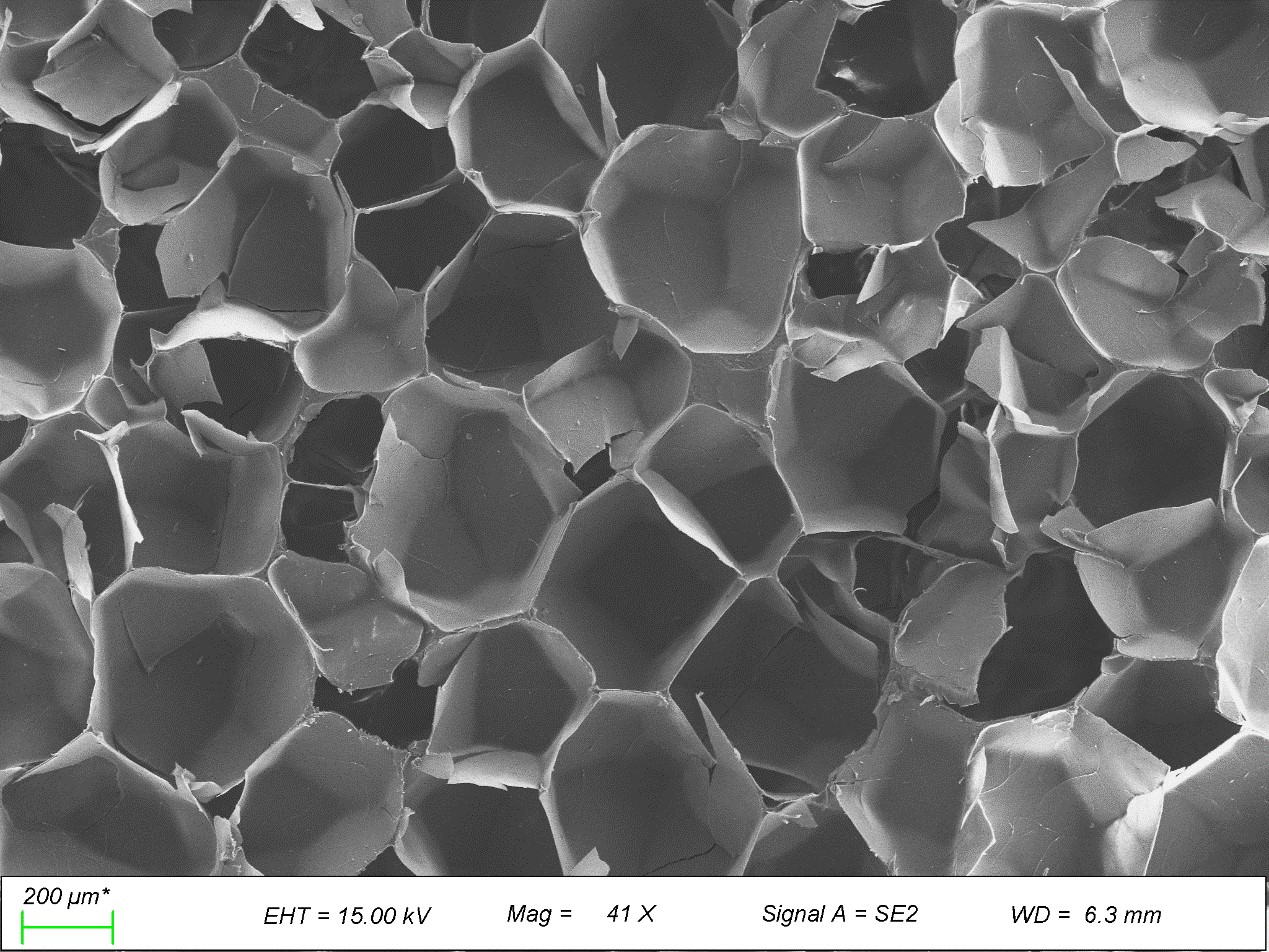

MC is a medium cell structure, which can get a good balance between peel strength and light weight requirements.
|
Properties |
Unit |
51 HT-MC |
71 HT-MC |
110 HT-MC |
Standard |
|
Density |
kg/m3 |
52 |
75 |
110 |
ISO 845 |
|
lbs/ft3 |
3.25 |
4.68 |
6.87 |
ASTM D1622 |
|
|
Compressive Strength |
MPa |
0.79 |
1.7 |
3.65 |
ISO 844 |
|
psi |
114.55 |
246.5 |
529.25 |
ASTM D1621 |
|
|
Tensile Strength |
MPa |
1.54 |
2.14 |
4.22 |
ISO 527-2 |
|
psi |
223.3 |
310.3 |
611.9 |
ASTM D638 |
|
|
Shear Strength |
MPa |
0.75 |
1.24 |
2.42 |
DIN 53294 |
|
psi |
108.75 |
179.8 |
350.9 |
ASTM C273 |
|
|
Elastic Modulus |
MPa |
71.6 |
101.3 |
180.1 |
ISO 527-2 |
|
psi |
10382 |
14688.5 |
26114.5 |
ASTM D638 |
|
|
Shear Modulus |
MPa |
21.7 |
40 |
75.6 |
DIN 53294 |
|
psi |
3146.5 |
5800 |
10962 |
ASTM C273 |
|
|
Elongation at Break |
% |
3 |
3 |
3 |
ISO 527-2 |
|
ASTM D638 |
|||||
|
HDT |
℃ |
213.2 |
217.2 |
222.3 |
DIN 53424 |
|
°F |
415.8 |
423.0 |
432.1 |
The above technical data are typical values at nominal densities
ARCHCELL ®200 HT-MC DIELECTRIC PROPERTIES
Test Frequency Range: 8.0GHz-18.0GHz
Test Method: GB/T 5597-1999, resonant cavity method
Test company: Sichuan Fengxi Inspection and Testing Co., Ltd.，
|
Frequency（MHz） |
Properties |
ARCHCELL® 200HT-MC |
|
8118 |
ε |
1.39 |
|
tanδ |
0.00988 |
|
|
9232 |
ε |
1.39 |
|
tanδ |
0.00933 |
|
|
10594 |
ε |
1.39 |
|
tanδ |
0.009 |
|
|
12118 |
ε |
1.39 |
|
tanδ |
0.00882 |
|
|
13747 |
ε |
1.38 |
|
tanδ |
0.00856 |
|
|
15447 |
ε |
1.38 |
|
tanδ |
0.00839 |
|
|
17191 |
ε |
1.37 |
|
tanδ |
0.00802 |
The above technical data are typical values at nominal densities
ARCHCELL® HT-CC

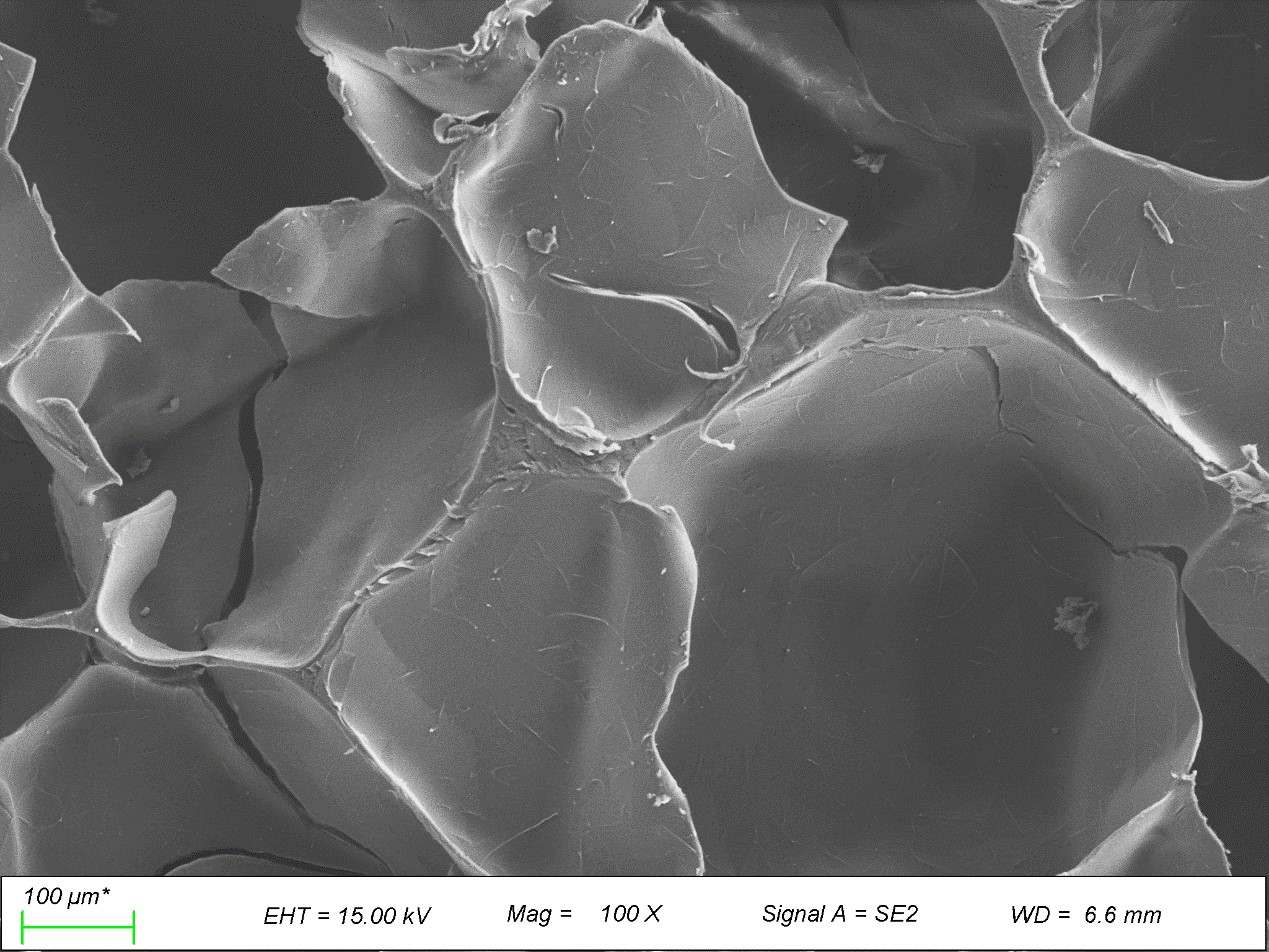

CC is a coarse cell structure with the highest adhesive absorption and the best peel strength.
|
Properties |
Unit |
51 HT-CC |
71 HT-CC |
110 HT-CC |
200 HT-CC |
Standard |
|
Density |
kg/m3 |
52 |
75 |
110 |
205 |
ISO 845 |
|
lbs/ft3 |
3.25 |
4.68 |
6.87 |
12.80 |
ASTM D1622 |
|
|
Compressive Strength |
MPa |
0.79 |
1.7 |
3.65 |
9.34 |
ISO 844 |
|
psi |
114.55 |
246.5 |
529.25 |
1354.3 |
ASTM D1621 |
|
|
Tensile Strength |
MPa |
1.54 |
2.14 |
4.22 |
6.88 |
ISO 527-2 |
|
psi |
223.3 |
310.3 |
611.9 |
997.6 |
ASTM D638 |
|
|
Shear Strength |
MPa |
0.75 |
1.24 |
2.42 |
4.97 |
DIN 53294 |
|
psi |
108.75 |
179.8 |
350.9 |
720.65 |
ASTM C273 |
|
|
Elastic Modulus |
MPa |
71.6 |
101.3 |
180.1 |
385.1 |
ISO 527-2 |
|
psi |
10382 |
14688.5 |
26114.5 |
55839.5 |
ASTM D638 |
|
|
Shear Modulus |
MPa |
21.7 |
40 |
75.6 |
150.6 |
DIN 53294 |
|
psi |
3146.5 |
5800 |
10962 |
21837 |
ASTM C273 |
|
|
Elongation at Break |
% |
3 |
3 |
3 |
3 |
ISO 527-2 |
|
ASTM D638 |
||||||
|
HDT |
℃ |
213.2 |
217.2 |
222.3 |
224.9 |
DIN 53424 |
|
°F |
415.8 |
423.0 |
432.1 |
436.8 |
The above technical data are typical values at nominal densities
Sales Range
|
Grade |
Size（mm） |
Standard Sheet Thickness（mm） |
Possible Sheet Thickness（mm） |
|
51 HT |
2500*1250 |
90 |
1-155mm |
|
71 HT |
2500*1250 |
80 |
1-140mm |
|
110 HT |
2160*1100 |
70 |
1-115mm |
|
200 HT-CC |
1900*900 |
60 |
1-90mm |
Thickness tolerance±（0.2mm）, others are available upon request
Disclaimer
Our technical advice on the applications of our products is given without obligation.
The buyer is responsible for their use and processing, and is also liable for observing any third-party rights.
Technical data concerning our products are typical values. Subject to alteration.
ARCHCELL® is a registered trademark of ARCH Industrial (HK) Limited.
