ARCHCELL® FIT

Demo Image

Product introduction

ARCHCELL® FIT

ARCHCELL® is a closed-cell rigid PMI (Polymethacrylimide) foam, which used as the core oflightweight sandwich structure.

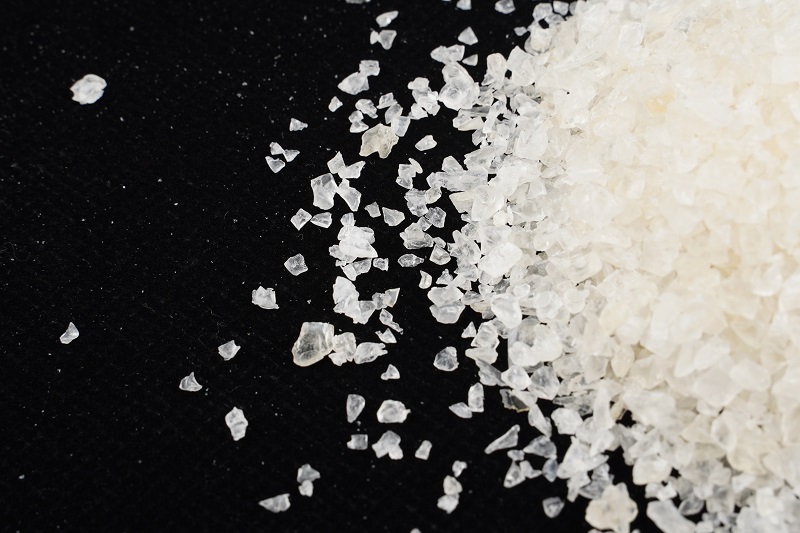

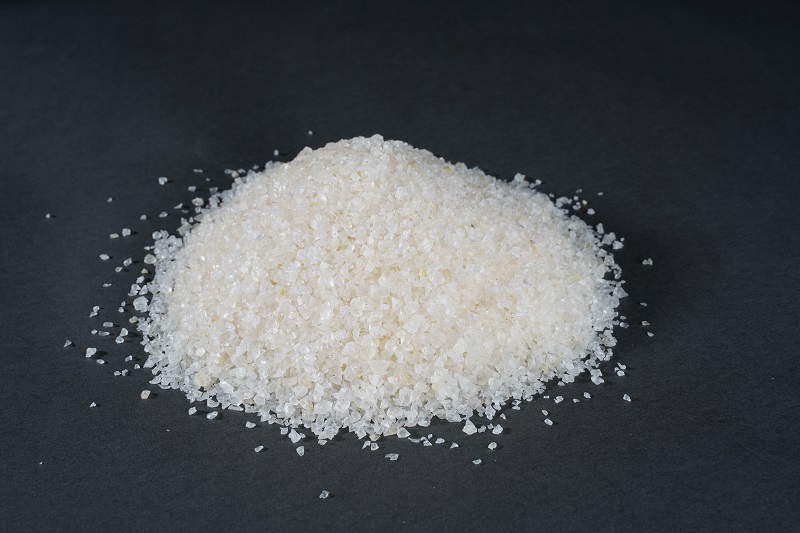

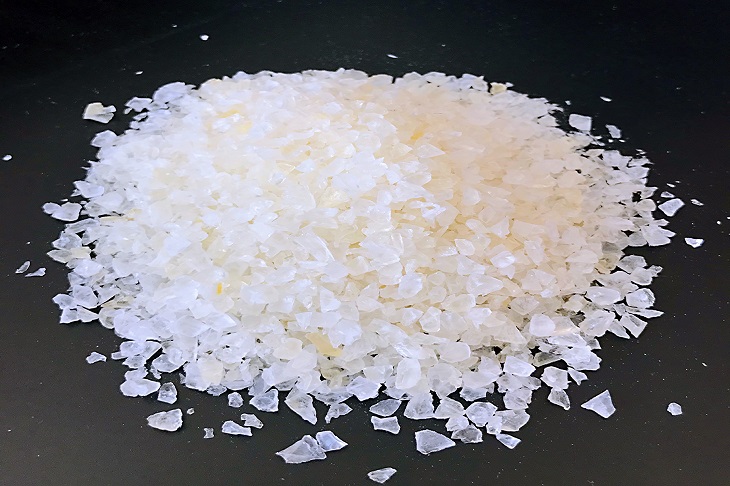

ARCHCELL® FIT is a polymethacrylimide pre-foamed granule that can be foamed directly in the mold.

This material is particularly suitable for high-volume production of irregularly shaped parts. The density of the molded parts can be selected between 70 and 200 kg/m3.

TYPICAL PROPERTY VALUES

Properties

Unit

75 FIT

110 FIT

150 FIT

200 FIT

Standard

Density

kg/m3

75

110

150

200

ISO 845

lbs/ft3

4.68

6.24

9.36

12.49

ASTM D1622

Compressive Strength
(3% deformation)

MPa

0.887

1.562

2.25

3.054

ISO 844

psi

128.6

226.5

326.3

442.8

ASTM D1621

Mechanical performance is under room temperature (23)

The above technical data are typical values at nominal densities (particle size from 1 to 5 mm, a hot melt reactive adhesive is used) and are subject to normal manufacturing variations.

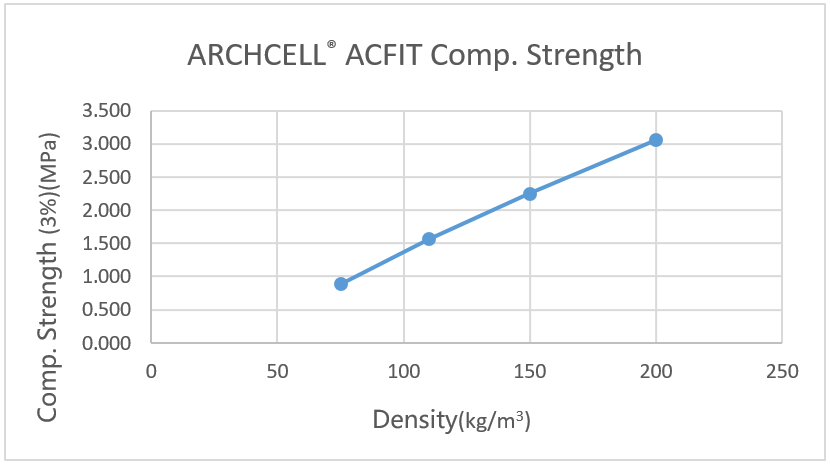

Compressive Performance
